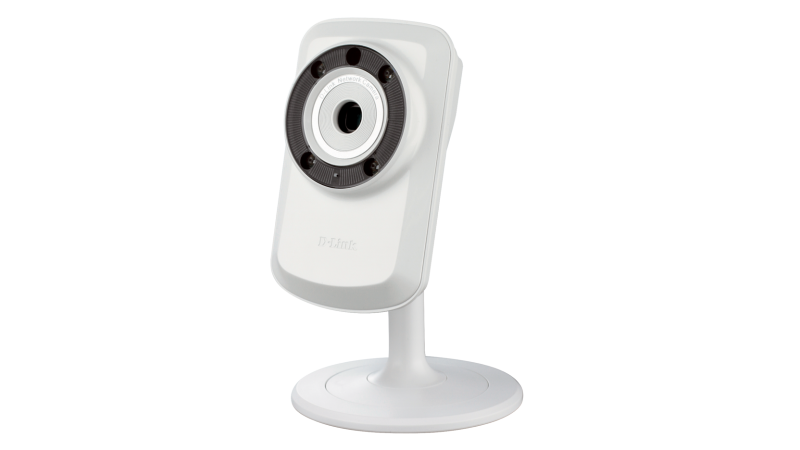

Day & Night Wi-Fi Camera

Technical Specifications

Camera Hardware Profile

• 1/5" VGA progressive CMOS sensor
• 16 ft night vision with infrared LEDs
• Minimum illumination: 0 lux with IR LEDs on
• Built-in microphone
• 4x digital zoom
• Focal length: 3.15 mm
• Aperture: F2.8
• Angle of view:
  • (H) 45.3°
  • (V) 34.5°
  • (D) 54.9°

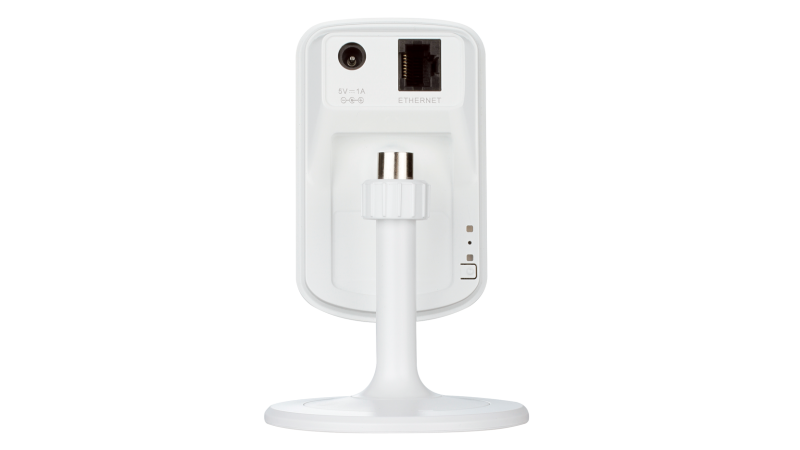

External Device Interfaces

• Power LED

• Reset button
• WPS button
• WPS LED
• Power connector
• 10/100Base-TX Ethernet port

Image Features

• Adjustable image size, quality and frame rate
• Adjustable brightness, saturation and contrast
• Time stamp and text overlays

Video Compression

• MJPEG format video compression
• JPEG for still images

Video Resolution

• 640 x 480 at up to 30 fps
• 320 x 240 up to 20 fps
• 160 x 112 up to 30 fps

Audio Support

• PCM

Mobile Support

• mydlink Lite app available for iOS, Android devices and Windows Phones
• mydlink + app available for iOS and Android devices
• Configurable motion and sound detection

Network

Network Protocols

• IPv4, ARP, TCP, UDP, ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (D-Link)
• SMTP Client
• FTP Client
• HTTP Server
• PPPoE
• UPnP port forwarding
• LLTD

Security

• Password authentication
• HTTP digest encryption

Physical

Dimensions (W x D x H)

• 3.15 x 4.98 x 3.15 inches

Weight

• 0.2 lbs (camera only)

Power Input

• 5 V DC / 1 A, 50/60 Hz through power adapter

Temperature

• Operating: 32 to 104 °F (0 to 40 °C)
• Storage: -4 to 158 °F (-20 to 70 °C)

Humidity

• Operating: 20% to 80% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• CE
• IC
• FCC Class B
• C-Tick
